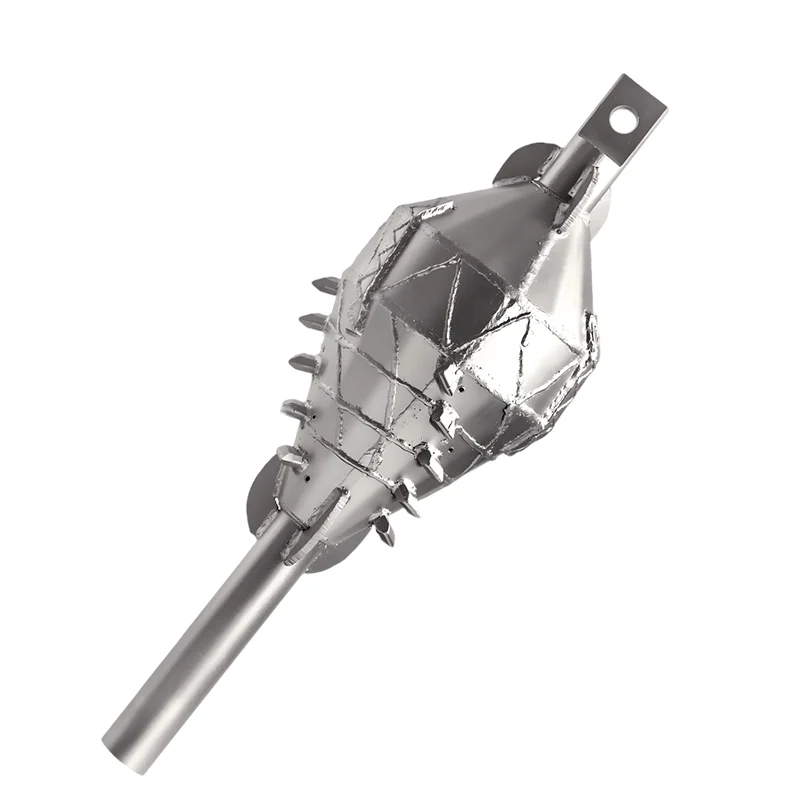

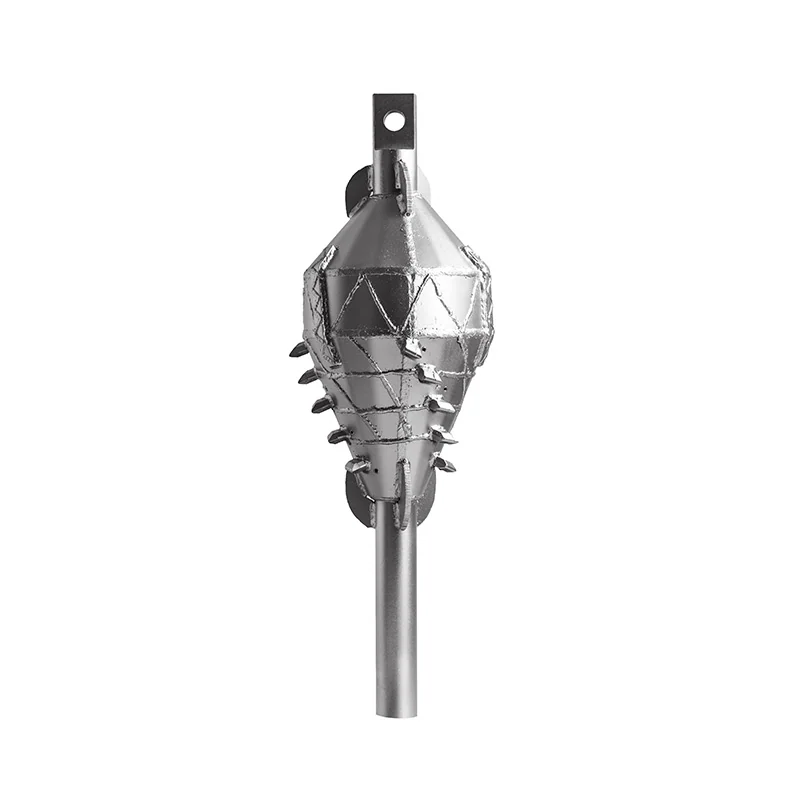

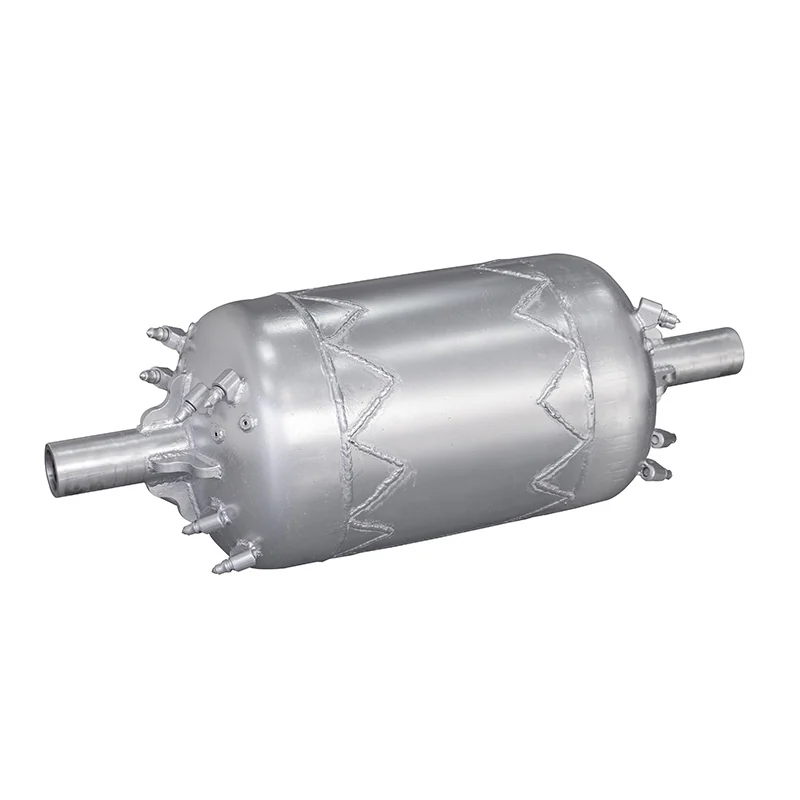

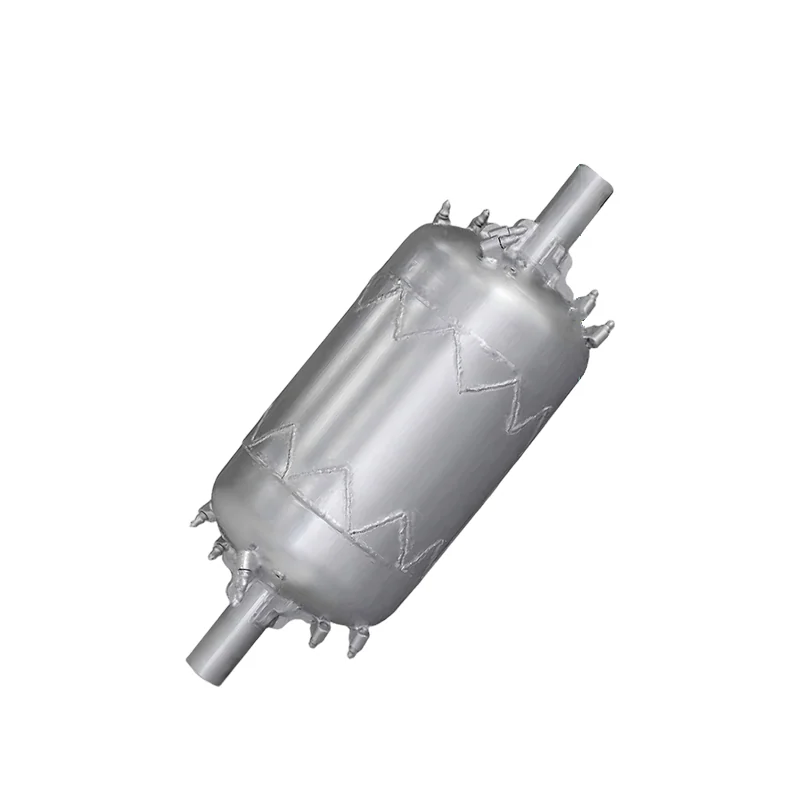

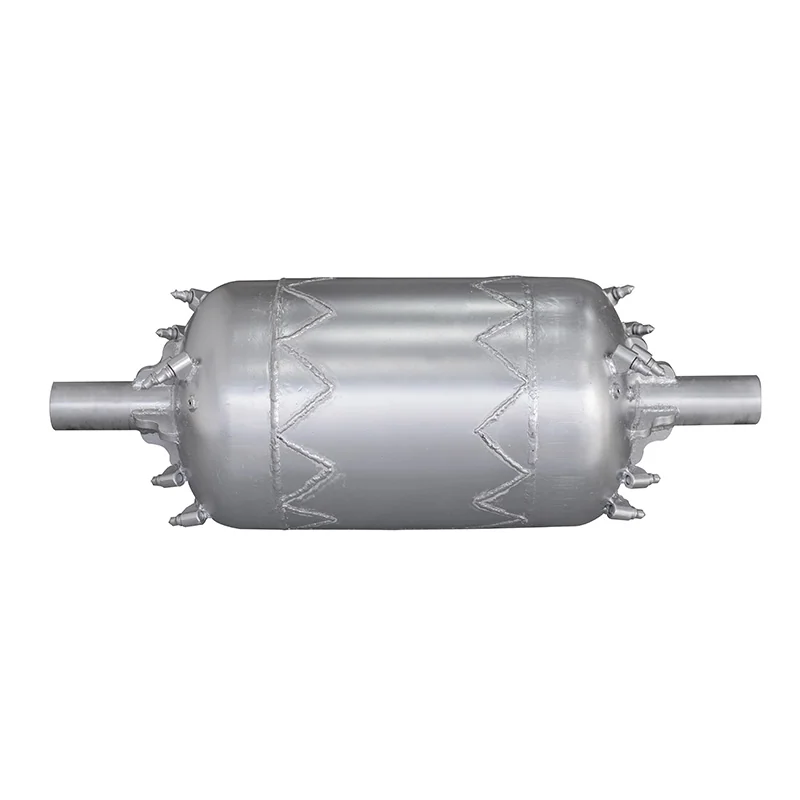

The Barrel Reamer is a powerful, large-diameter hole-enlarging tool specially designed for soft soil, loose formations, and complex geological conditions.
Precision-manufactured from high-strength alloy steel, this product features a unique working mechanism that combines rolling compaction with cutting. It effectively enlarges the borehole diameter, significantly improves reaming efficiency, and compacts the borehole wall simultaneously.
Its streamlined, barrel-shaped design not only ensures efficient spoil removal and mud circulation but also maintains exceptional borehole stability, providing a smooth and safe tunnel environment for subsequent pipe pullback. The overall structure is highly robust and wear-resistant, delivering outstanding impact resistance and a prolonged service life.
Features
-
High-Efficiency Reaming: A scientifically engineered tooth layout and streamlined body significantly accelerate the hole-forming process and reduce repetitive operational time.
-
Optimized for Soft Soil: Specially designed for soft soil conditions. It excels in clay, sand, backfill, and similar formations, providing excellent compaction and shaping effects.
-
Exceptional Borehole Stability: Exerts strong radial pressure on the borehole wall during operation, drastically minimizing the risk of collapse and ensuring a high-quality bore.
-
Robust, Durable, and Impact-Resistant: Welded from premium alloy steel to provide superior strength and wear resistance, easily handling complex and demanding construction environments.
-
Comprehensive Specifications & Customizable: Standard sizes range from Φ200mm to 2000mm to meet diverse diameter requirements. Custom dimensions are also available upon request.
-
Easy Installation & Wide Compatibility: Offers flexible connection options to ensure compatibility with mainstream drilling rigs on the market.
Technical Specifications
| Parameter | Details |
| Size | Φ200 ~ 2000mm |
| Suitable Formations | Soft soil, loose formations, clay, sand, and backfill. |
| Connection with Drill Rod | Quick-Detach (Octagonal Sleeve Structure): Designed for rapid assembly and disassembly, significantly saving on-site operational time. |
| Direct Connection: Compact structure and easy installation, providing more stable and direct torque transmission. | |
| Connection with Laid Pipe | With Swivel: Built-in rotary joint prevents the pipeline from twisting or sustaining damage during the pullback process. |
| Without Swivel: Basic configuration, allowing customers to flexibly pair it with their existing equipment. |
